*Note: All the data is shared while assuming that the reader is a US-citizens
The valve cover gasket is a must for any engine when it comes to efficiency and maintenance. It acts as a seal between the engine and its valve cover to prevent any kind of damaging oil leakage.
We’ll explore the costs associated with replacing the valve cover gasket, and compare the DIY approach to professional repairs to help you make the right decision.
Understanding the Basics First
Before understanding the cost breakdown, one must look at these essential gasket points.
The Impact of Neglecting Valve Cover Gasket Replacement
Ignoring the gasket failure can lead to significant engine damage and costly repairs.
It can reduce engine efficiency/power, increase oil consumption, and cause the engine to overheat.
Mixing of coolant in the oil therefore lowers cooling system integrity, excessive smoke release, misfiring, bubbles generation in the radiator, and oil contamination are also significant effects.
Common Materials Used for Manufacturing
Valve cover gaskets are needed to be made from flat & flexible sealing material.
Depending on the application, they are made from different materials. These can be rubber, silicone, cork, non-asbestos fiber, graphite, silicon, paper, or PTFE.
5 Signs of Valve Cover Gasket Failure
If you notice any of these symptoms in your vehicle, check your gasket, as it might need replacing.
- A worn-out gasket causes oil to leak into other engine parts therefore producing a sweet burning oil smell.
- Leakage around the edges of the valve causes oil to drip into the exhaust manifold causing white or blue smoke.
Blue and White Smoke
- Leaked engine oil causes low engine oil levels therefore leading to diminished lubrication and overheating.
- If the valve cover looks dirty or soaked with oil, do inspect the gasket as the leaking oil absorbs dirt and debris.
- A hissing or whistling sound (due to pressurized air leak) when the engine is running that worsens when you step on the gas pedal is also a sign.
6 Reasons for Gasket Failure
- Improper installation may not seal the gasket properly, leading to leaks. Misalignment, unclean surface, and over-tightening of bolts can also damage the gasket.
- Overheating causes gasket material to become brittle and crack over time thus reducing its sealing capability.
- Using Low-quality coolant can cause excessive heat and stress on the valve cover gasket.
- Pre-ignition can cause spikes in cylinder pressure, which may damage the gasket due to increased stress. The same goes for excessive engine pressure.
- Oil contamination with dirt, debris, or moisture, can degrade the gasket material.
- Delayed oil exchanges may cause seals and valve cover gaskets to fail.
Factors Influencing Replacement Cost
The following factors contribute to the replacement cost of the valve cover gasket.
Type of Vehicle
The make and model of your vehicle significantly influence the cost of replacement parts and the complexity of the replacement process. Such as the valve cover gasket for the Chevrolet Silverado is pricing 16.26$ on Amazon while 28.38$ for the gasket of the Honda Odyssey.
Expensive cars have expensive parts also and some vehicles even have more complex parts.
Material Costs
Silicone gaskets might offer better durability but come at a higher cost compared to traditional cork or rubber gaskets.
Geographic Location
Labor costs can vary dramatically depending on where you live especially due to varying exchange rates or inflation rates, affecting the overall cost of professional gasket replacement.
Cost
Gaskets typically cost between $10 and $40, depending on the material and the respective brand. Read our article about the best valve cover gasket to buy in 2024.
Cost Breakdown: DIY Approach
Replacing the gasket yourself is cost-effective, but it requires sound technical knowledge and expertise in using the required tools.
You’ll need a basic mechanic tool set, a new gasket, and potentially new valve cover bolts.
Tools required are:
- Gasket itself
- A 10mm socket set
- Torque Wrench
- A Screwdriver kit
- Pair of pliers to release hose clamps
- Brake cleaner or degreaser along with a sponge or brush
- Sensor-safe silicon sealant or simply RTV silicone sealant
$130 is the maximum estimated cost(as per Amazon pricing) of material and the rest is up to your technical skills.
DIY repairs can be risky if not done correctly, potentially leading to further engine damage and higher costs later on.
Evaluate your mechanical skills realistically; some engine configurations might be too complex for a novice. Weigh the upfront savings against the potential cost of future repairs due to improper installation.
Go through our full guide on valve cover gasket replacement from removing the valve cover to installing the new gasket and reassembling the components.
Cost Breakdown: Professional Repair
The major difference in cost when opting for professional repair comes due to the labor cost, work smoothness, and the service charges but this results in work satisfaction and perfection.
How Mechanics Price Labor
Labor costs are typically calculated based on the complexity of the service and the time it takes to complete the repair.
It is easy in the case of inline engines but V-engines like V6 and V8 engines may require more labor work because the intake manifold needs to be removed first before accessing the valve cover which may take several hours.
It takes 1-1.5 hours to finish the task and the charges range from $75 to $1301 for labor depending upon the vehicle, its model, quality of service, and intensity of work.
Labor rates can vary greatly. Anywhere from $75–125 per hour at an independent shop is fair. If you go to a dealership, $125–175 is a fair labor rate.2

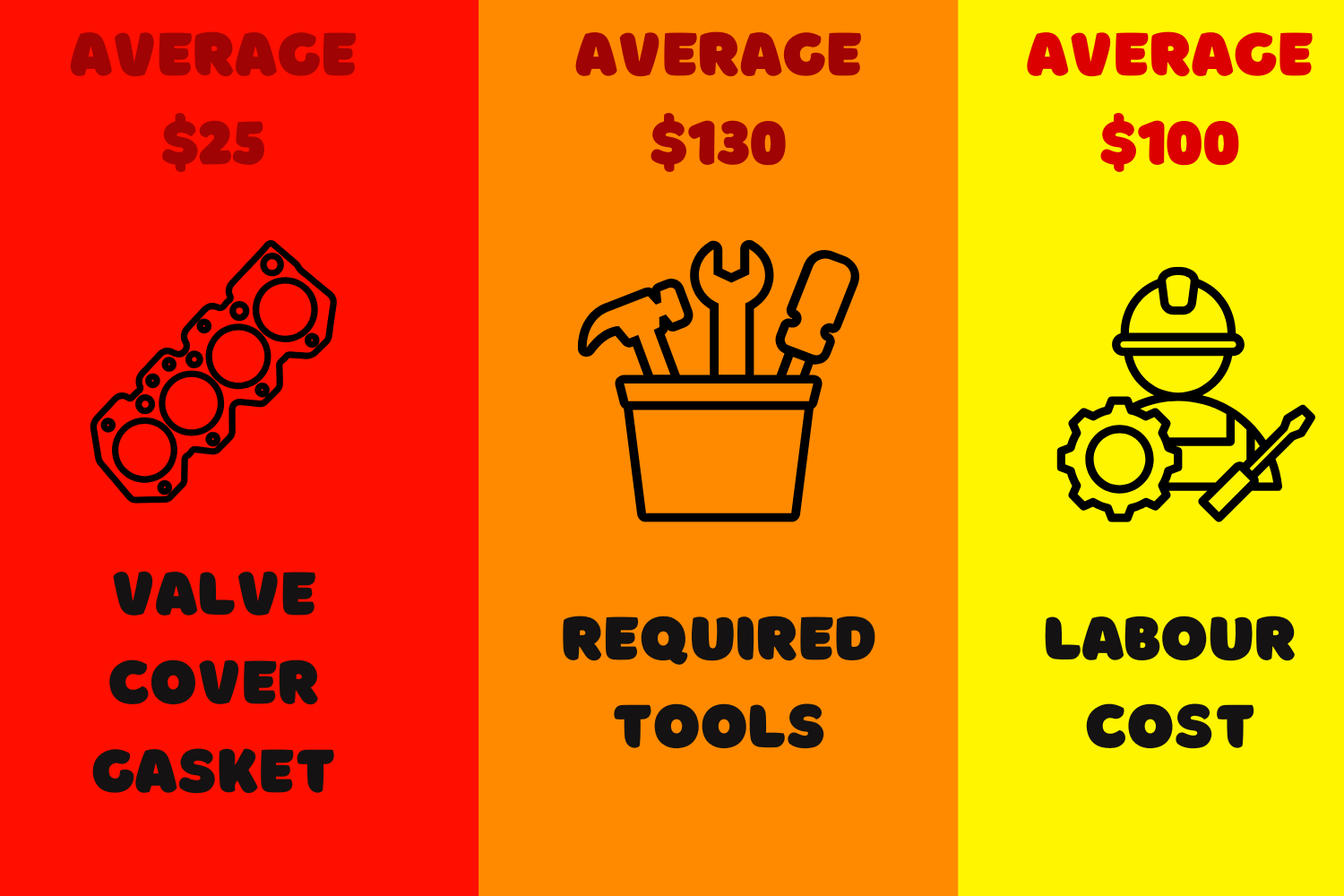

Valve Cover Gasket Replacement Cost Breakdown

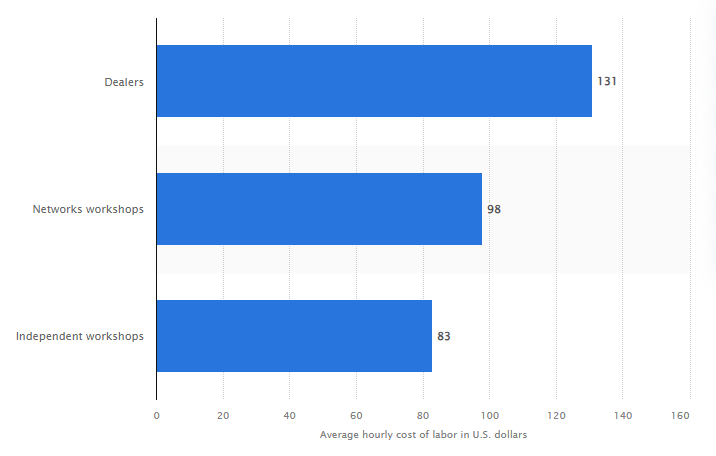

Here is a table showing the average hourly cost of mechanic’s labor in the U.S. if done through dealers($131), Network workshops($98), or Independent Workshops($83).
The above rates are in the case when you hire a mechanic for a special task, like gasket replacement which is higher than the hourly wage i.e. $24.81(avg.) given to mechanic employees3. Such hourly wages for mechanic employees also vary across different states depending on the cost of living.

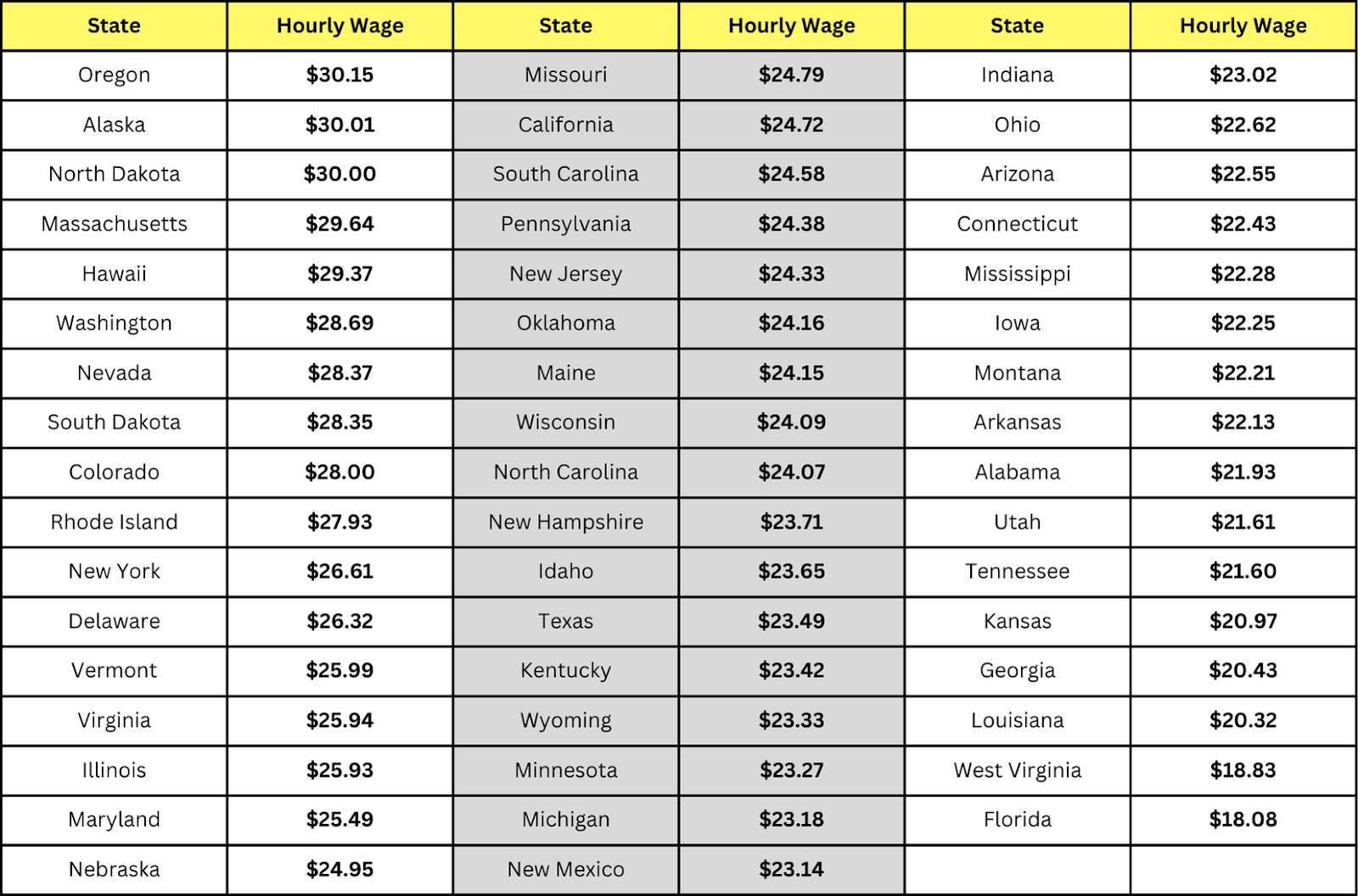

This chart shows the hourly wage of mechanics across 50 states of the United States.
4
Additional Services Included in Professional Repair
Some additional services are offered by mechanics like performing a general engine inspection to identify any other potential issues and the replacement of additional components. These also contribute to the increment in total cost.
Choosing the Right Mechanic
Choosing the clumsy mechanic can ruin your money.
Notice these points to select a reliable mechanic to ensure you receive quality service.
- Experience and Certification: Look for mechanics with specific training certifications like ASE (Automotive Service Excellence). Mechanics with experience working on your car’s make and model can perform the repair accurately.
- Reputation and Reviews: Check online reviews and ratings on platforms like Google, Yelp, or social media. Word-of-mouth recommendations are also valuable.
- Price and Transparency: Get quotes from different mechanics to compare prices. A reputable mechanic will show a detailed breakdown of the cost, including labor and parts. Be cautious of extremely low estimates, as they might compromise the quality by using subpar parts or rushed labor.
- Warranty on Parts and Labor: Do prioritize the mechanic who is offering warranties on both parts and durability of the work.
Here are some best platforms for finding suitable mechanics for your gasket replacement.
When to Opt for DIY or Professional Repair
DIY is suitable for those with mechanical experience or minor gasket leaks that require straightforward repairs.
Complex engine designs or severe leaks should be handled by professionals to avoid costly mistakes. Also, professional repairs often come with a warranty on parts and labor, providing extra security for your investment.
Tips to Reduce Valve Cover Gasket Repair & Replacement Cost
Replacing gaskets is time-consuming as well as a burden on your pocket. Follow these tips to prolong your gasket life.
- Regularly inspect your engine. It will help catch leaks before they become severe. Here is a checklist for engine maintenance.
- Keeping your engine clean and well-maintained will extend the life of all components, including your valve cover gasket.
- When we install a valve cover gasket the cover and the valve cover surface should be clean and dry. Oil on either surface prevents the bond therefore causing the valve cover gasket to leak.
- Add RTV silicone to the inner corners of the gasket while installing as this will help prevent any ruptures. The reason is that the pressure is most at corners, and also the gasket body is weak at corners. See the tutorial for applying RTV to the corners of the gasket in this video.
- The bolts holding the valve cover have a torque specification. If you mess with that by just wrenching down the bolts, you will likely warp the valve cover. The optimal value is 43 to 78 inch lb.
Watch this experiment to get a better idea of what happens when you over-torquing a bolt.
- Poor cooling system maintenance will raise engine temperature, which can cause valve cover gaskets to fail. The positive crankcase ventilation (PCV) system is also important to engine sealing.
When we don’t properly vent engine crankcase pressure, oil is forced or pumped past gaskets and seals.
Check out some useful tips for maintaining cooling system of your vehicle in this article.
- Sometimes metal above and below valve covers are painted before engine assembly. If the paint comes loose later after the gasket installation, the valve cover gasket has nothing to stick to. Therefore remove any peeling paint before replacing the valve cover gasket.
The Bottom Line
The cost of valve cover gasket replacement depends on your technical skills, your vehicle’s engine, and your ability to find the best services and products in terms of both quality and pricing.
The valve cover gasket plays a critical role in maintaining engine efficiency by preventing oil leaks. Neglecting its replacement can lead to engine damage and increased repair costs.
Replacing on your own can save money, but it requires technical skills meanwhile, professional repairs offer reliability and often include warranties but come at a higher cost. By understanding the costs and requirements involved, you can make an informed decision.
